The JV241045 stainless steel full-bore, two-piece fire safe ball valve complies with ANSI standards, ensuring compatibility with ANSI 150 flange specifications. This design and specification make it suitable for a wide range of applications across various industries, making it an ideal choice for reliability and performance in fluid control systems. This valve is supplied and completely assembled with a JV-M electric actuator with a gearbox manual override, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections | DN15-DN200 (1/2″-8″) • Flanged ANSI 150 |
| Valve Type | 2 Piece Full Bore Ball Valve |
| Actuator Type | Electric • 1/4 Turn • Exd • Manual Gearbox Override |
| Actuator Voltages | 24VDC • 110 & 220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • TFM1600 Seat • Stainless Steel Ball |
| Applications | Air • Gas • Oil • Steam • Water |
| Pressure & Temperature* | Class 150 • -29°C to 180°C |
| Approvals | Face to face: DIN 3202 F4, EN 558-1-27** • Exd IP67 Enclosure*** • ATEX, NACE & Fire-Safe to API 6074th Edition*** |
*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only
 |
 |
 |
 |
||
| Download PDF Datasheet | IP67 Rated Waterproof | Certified to API 607 4th Edition | Exd Approved Actuator |
The JV241042 stainless steel full-bore, two-piece fire safe ball valve complies with ANSI standards, ensuring compatibility with ANSI 150 flange specifications. This design and specification make it suitable for a wide range of applications across various industries, making it an ideal choice for reliability and performance in fluid control systems. This valve is supplied and completely assembled with a JV-M electric actuator with a gearbox manual override, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections | DN15-DN200 (1/2″-8″) • Flanged ANSI 150 |
| Valve Type | 2 Piece Full Bore Ball Valve |
| Actuator Type | Electric • 1/4 Turn • Exd • Manual Gearbox Override |
| Actuator Voltages | 24VDC • 110 & 220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • TFM1600 Seat • Stainless Steel Ball |
| Applications | Air • Gas • Oil • Steam • Water |
| Pressure & Temperature* | Class 150 • -29°C to 180°C |
| Approvals | Face to face: DIN 3202 F4, EN 558-1-27** • Exd IP67 Enclosure*** • ATEX, NACE & Fire-Safe to API 6074th Edition*** |
*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only

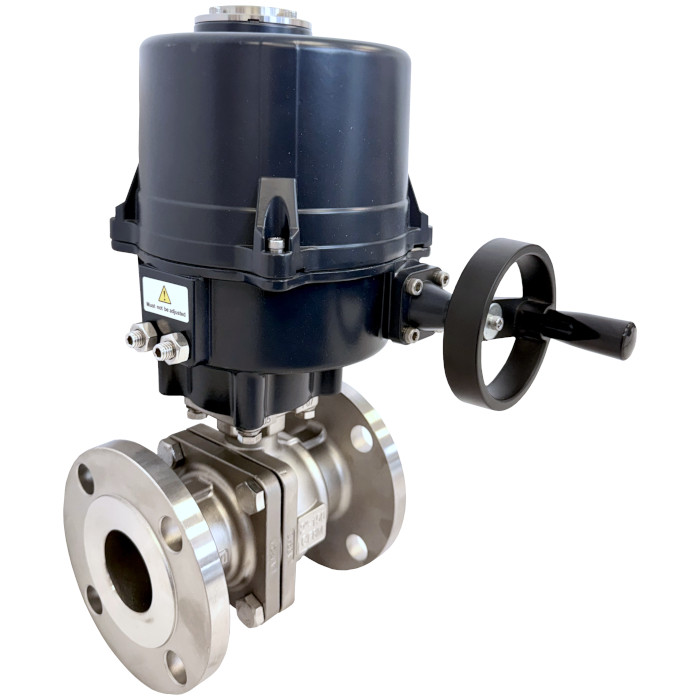

JV241046 Electrically Actuated Fire Safe Two Piece Stainless Steel Ball Valve – ANSI
| 15mm-50mm (1/2"-2") |
| Screwed BSP Female |
| Pressure up to 138 Bar |
 |
| 6mm-100mm (1/4"-4") |
| Screwed BSPT Female |
| Pressure up to 82 Bar |
  |
| DN15-DN100 (1/2"-4") |
| Flanged ANSI 150 |
| Pressure up to 20 Bar |
|
