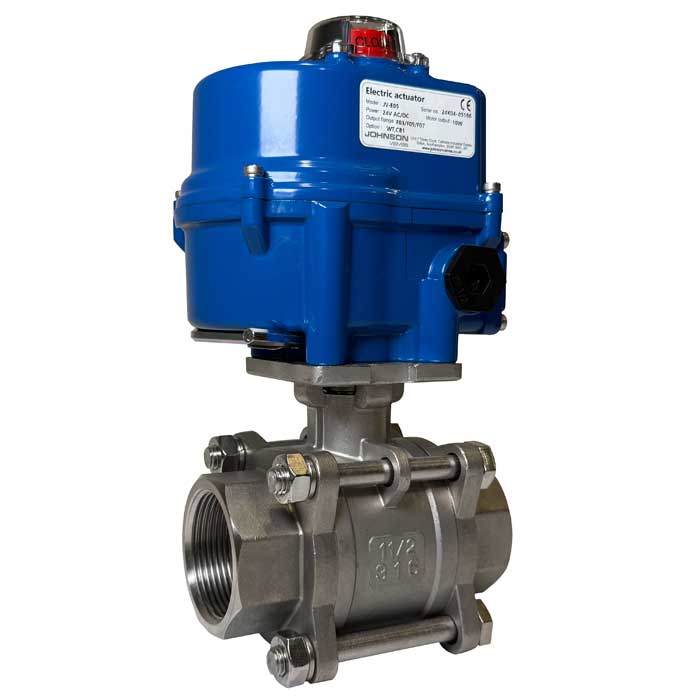

The JV240008 stainless steel-bodied full-bore ball valve is suitable for industrial and commercial applications, including water treatment facilities, chemical processing plants, and HVAC systems. This valve features a three-piece design, simplifying repairs and replacements and significantly reducing long-term maintenance costs. The accessibility of internal components allows engineers to perform essential inspections and servicing, ensuring the valve operates effectively and reliably throughout its operational life. This valve is supplied and completely assembled with a JV-E electric actuator, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections | 6mm to 100mm (1/4″-4″) • Screwed BSPT Female |
| Valve Type | 3 Piece Full Bore Ball Valve |
| Actuator Type | Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type) |
| Actuator Voltages | 24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • R-PTFE Seat • Stainless Steel Ball |
| Applications | Air • Gas • Oil • Steam • Water |
| Pressure & Temperature* | 82 Bar • Up to 200°C |
| Approvals | IP68 Rated** |
*Dependent on size, pressure & temperature – see datasheet **Actuator only
 |
 |
||||
| Download PDF Datasheet | IP68 Rated Waterproof |
The JV240008 stainless steel-bodied full-bore ball valve is suitable for industrial and commercial applications, including water treatment facilities, chemical processing plants, and HVAC systems. This valve features a three-piece design, simplifying repairs and replacements and significantly reducing long-term maintenance costs. The accessibility of internal components allows engineers to perform essential inspections and servicing, ensuring the valve operates effectively and reliably throughout its operational life. This valve is supplied and completely assembled with a JV-E electric actuator, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections | 6mm to 100mm (1/4″-4″) • Screwed BSPT Female |
| Valve Type | 3 Piece Full Bore Ball Valve |
| Actuator Type | Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type) |
| Actuator Voltages | 24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • R-PTFE Seat • Stainless Steel Ball |
| Applications | Air • Gas • Oil • Steam • Water |
| Pressure & Temperature* | 82 Bar • Up to 200°C |
| Approvals | IP68 Rated** |
*Dependent on size, pressure & temperature – see datasheet **Actuator only
JV240008 Electrically Actuated Three-Piece Stainless Steel Ball Valve Datasheet (PDF)
