JV241056

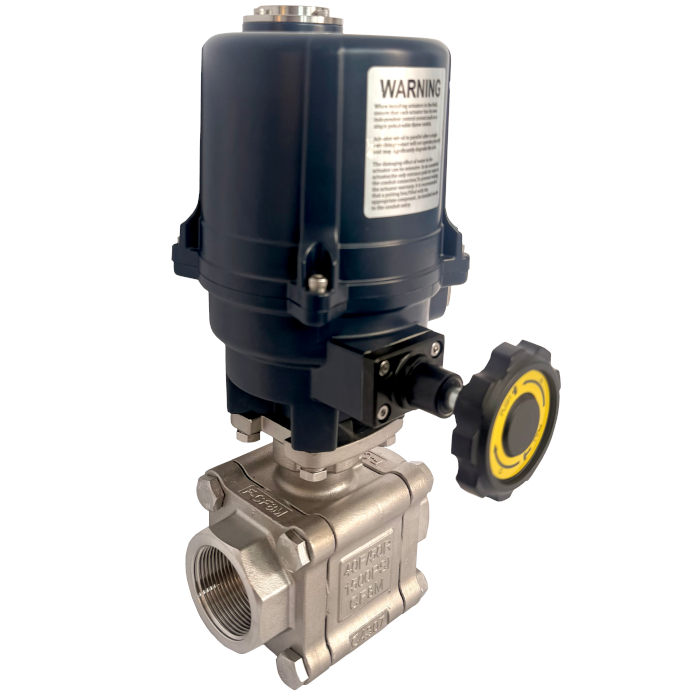

Electrically Actuated Fire Safe Stainless Steel Ball Valve

A high performance Stainless Steel bodied full bore Ball valve suitable for various heavy duty applications due to its high pressure capabilities and fire-safe approval. This valve is supplied and completely assembled with a JV-M electric actuator with a gearbox manual override, which is small, lightweight, and compact in design but still offers high-output torques.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections	15mm-50mm (1/2″-2″) • Screwed BSP Female (NPT, Socket & Butt Weld on request)
Valve Type	3 Piece Full Bore Ball Valve
Actuator Type	Electric • 1/4 Turn • Exd • Manual Gearbox Override
Actuator Voltages	24VDC • 110 & 220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase)
Valve Materials	Stainless Steel Body • TFM1600 Seat • Stainless Steel Ball
Applications	Air • Gas • Oil • Steam • Water
Pressure & Temperature*	138 Bar • -45°C to 180°C
Approvals	Fire Safe to API 607 4th Edition • Exd IP67 Enclosure* • ATEX

*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only


Download PDF Datasheet	IP67 Rated Waterproof	Exd Approved Actuator	Certified to API 607 4th Edition

The JV241048 stainless steel-bodied full-bore ball valve is suitable for industrial and commercial applications, including water treatment facilities, chemical processing plants, and HVAC systems. This valve features a three-piece design, simplifying repairs and replacements and significantly reducing long-term maintenance costs. The accessibility of internal components allows engineers to perform essential inspections and servicing, ensuring the valve operates effectively and reliably throughout its operational life. This valve is supplied and completely assembled with a JV-M electric actuator with a gearbox manual override, which is small, lightweight, and compact in design but still offers high-output torques.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections	15mm-50mm (1/2″-2″) • Screwed BSP Female (NPT, Socket & Butt Weld on request)
Valve Type	3 Piece Full Bore Ball Valve
Actuator Type	Electric • 1/4 Turn • Exd • Manual Gearbox Override
Actuator Voltages	24VDC • 110 & 220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase)
Valve Materials	Stainless Steel Body • TFM1600 Seat • Stainless Steel Ball
Applications	Air • Gas • Oil • Steam • Water
Pressure & Temperature*	138 Bar • -45°C to 180°C
Approvals	Fire Safe • Exd IP67 Enclosure* • ATEX<
