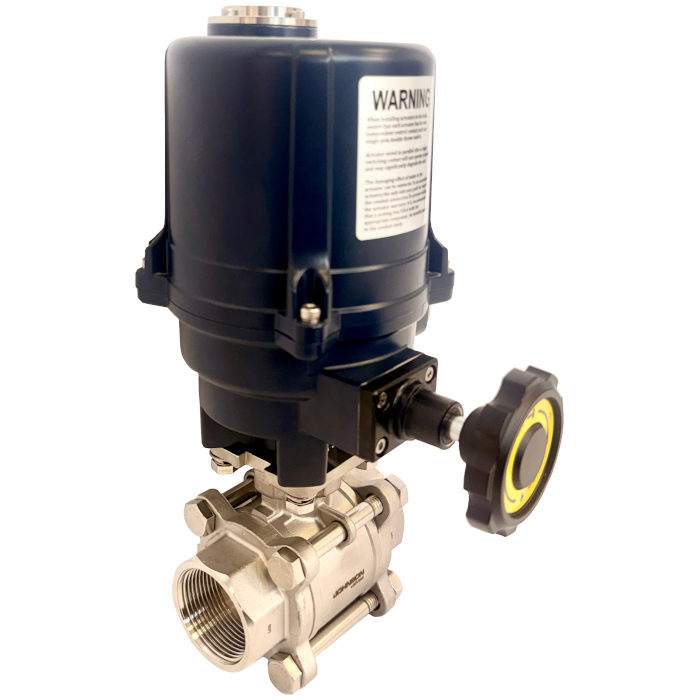

The JV241048 stainless steel-bodied full-bore ball valve is suitable for industrial and commercial applications, including water treatment facilities, chemical processing plants, and HVAC systems. This valve features a three-piece design, simplifying repairs and replacements and significantly reducing long-term maintenance costs. The accessibility of internal components allows engineers to perform essential inspections and servicing, ensuring the valve operates effectively and reliably throughout its operational life. This valve is supplied and completely assembled with a JV-M electric actuator with a gearbox manual override, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections | 6mm-100mm (1/4″-4″) • Screwed BSPT Female |
| Valve Type | 3 Piece Full Bore Ball Valve |
| Actuator Type | Electric • 1/4 Turn • Exd • Manual Gearbox Override |
| Actuator Voltages | 24VDC • 110 & 220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • TFM1600 Seat • Stainless Steel Ball |
| Applications | Air • Gas • Oil • Steam • Water |
| Pressure & Temperature* | 63 Bar • Up to 200°C |
| Approvals | Exd IP67 Enclosure*** • ATEX |
*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only
 |
 |
 |
|||
| Download PDF Datasheet | IP67 Rated Waterproof | Exd Approved Actuator |
The JV241048 stainless steel-bodied full-bore ball valve is suitable for industrial and commercial applications, including water treatment facilities, chemical processing plants, and HVAC systems. This valve features a three-piece design, simplifying repairs and replacements and significantly reducing long-term maintenance costs. The accessibility of internal components allows engineers to perform essential inspections and servicing, ensuring the valve operates effectively and reliably throughout its operational life. This valve is supplied and completely assembled with a JV-M electric actuator with a gearbox manual override, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections | 6mm-100mm (1/4″-4″) • Screwed BSPT Female (NPT, Socket & Butt Weld on request) |
| Valve Type | 3 Piece Full Bore Ball Valve |
| Actuator Type | Electric • 1/4 Turn • Exd • Manual Gearbox Override |
| Actuator Voltages | 24VDC • 110 & 220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • TFM1600 Seat • Stainless Steel Ball |
| Applications | Air • Gas • Oil • Steam • Water |
| Pressure & Temperature* | 63 Bar • -29°C to 180°C |
| Approvals | Exd IP67 Enclosure*** • ATEX |
*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only
JV241048 – Electrically Actuated Three-Piece Stainless Steel Ball Valve
| 6mm-100mm (1/4"-3") |
| Screwed BSPP Female |
| Pressure 40 Bar |
 |
| DN15-DN100 (1/2"-4") |
| Flanged ANSI 150 |
| Pressure up to 20 Bar |
 |
| DN15-DN200 (1/2"-8") |
| Flanged PN16/40 |
| Pressure up to 40 Bar |
 |
