JV240010

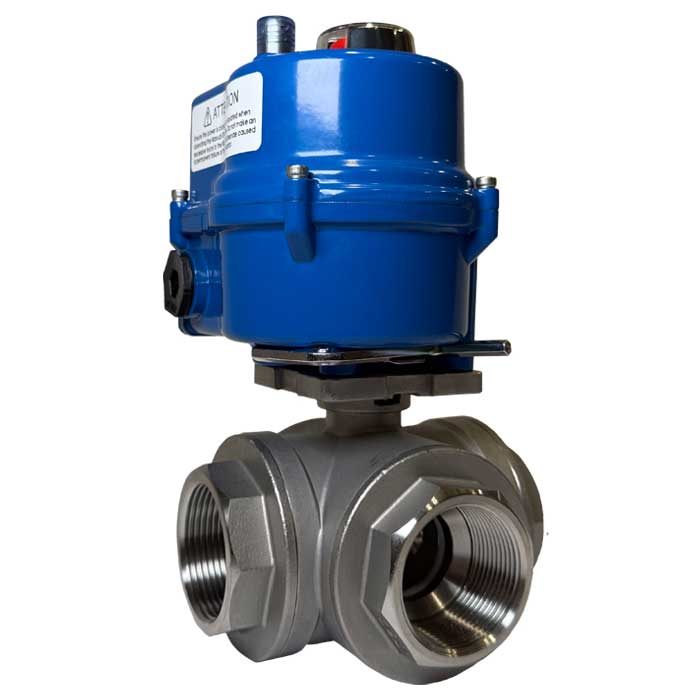

Electrically Actuated 3-Way T-Ported Stainless Steel Ball Valve

The JV240010 is an exceptionally durable and robust three-way, T-Ported stainless steel ball valve, specifically designed to ensure reliable and efficient performance across a wide range of applications where fluid diversion and control are essential for operational success. This valve is supplied and completely assembled with a JV-E electric actuator, which is small, lightweight, and compact in design but still offers high-output torques.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections	6mm to 100mm (1/4″-4″) • Screwed BSPT Female
Valve Type	3-Way T-Ported Full Bore Ball Valve
Actuator Type	Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type)
Actuator Voltages	24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase)
Valve Materials	Stainless Steel Body • R-PTFE (15%) Seat • Stainless Steel Ball
Pressure & Temperature*	82 Bar • Up to 200°C
Applications	Air • Gas • Oil • Steam • Water
Approvals	IP68 Rated**

*Dependent on size, pressure & temperature – see datasheet **Actuator only


Download PDF Datasheet	IP68 Rated Waterproof
