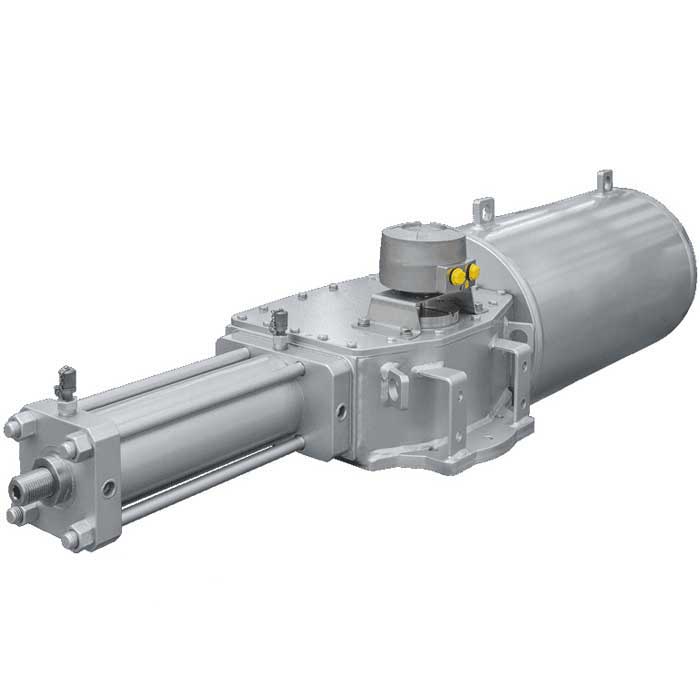

The VTS Scotch yoke actuator is engineered for exceptional durability, specifically manufactured to endure the rigorous demands of challenging industrial environments while delivering precise and consistent movement. This actuator is designed to ensure reliable and efficient operation in critical applications, making it an indispensable component in various industries where performance and dependability are of utmost importance.
| Type | Pneumatic • 90° Turn • Scotch Yoke • Single Acting (Spring Return) • Double Acting |
| Torque Range | Single Acting (Spring Return) 2.4Nm to 9665Nm • Double Acting 2.9Nm to 12502.2Nm |
| ISO 5211 Mountings | F14 • F16 • F25 • F30 • F35 • F40 • F48 • F60 |
| Casing Materials | Ductile Iron |
| Air Supply Pressure Range | 3 to 6 Bar |
| Air Connections | NPT Screwed (others on request) |
| Approvals | ATEX • SIL3 |
 |
 |
 |
|||
| Download PDF Datasheet | ATEX Approved | SIL3 Safety Integrity Level 3 |
The VTS Scotch yoke actuator is engineered for exceptional durability, specifically manufactured to endure the rigorous demands of challenging industrial environments while delivering precise and consistent movement. This actuator is designed to ensure reliable and efficient operation in critical applications, making it an indispensable component in various industries where performance and dependability are of utmost importance.
| Type | Pneumatic • 90° Turn • Scotch Yoke • Single Acting (Spring Return) • Double Acting |
| Torque Range | Single Acting (Spring Return) 2.4Nm to 9665Nm • Double Acting 2.9Nm to 12502.2Nm |
| ISO 5211 Mountings | F14 • F16 • F25 • F30 • F35 • F40 • F48 • F60 |
| Casing Materials | Ductile Iron |
| Air Supply Pressure Range | 3 to 6 Bar |
| Air Connections | NPT Screwed (others on request) |
| Approvals | ATEX • SIL3 |
| 90° Turn • Single & Double Acting |
| ISO Mounting F03 to F14 |
| Torque 1.5Nm to 1878Nm |
| |
| 90° Turn • Single & Double Acting |
| ISO Mounting F03 to F25 |
| Torque 2.4Nm to 12502.2Nm |
| |
