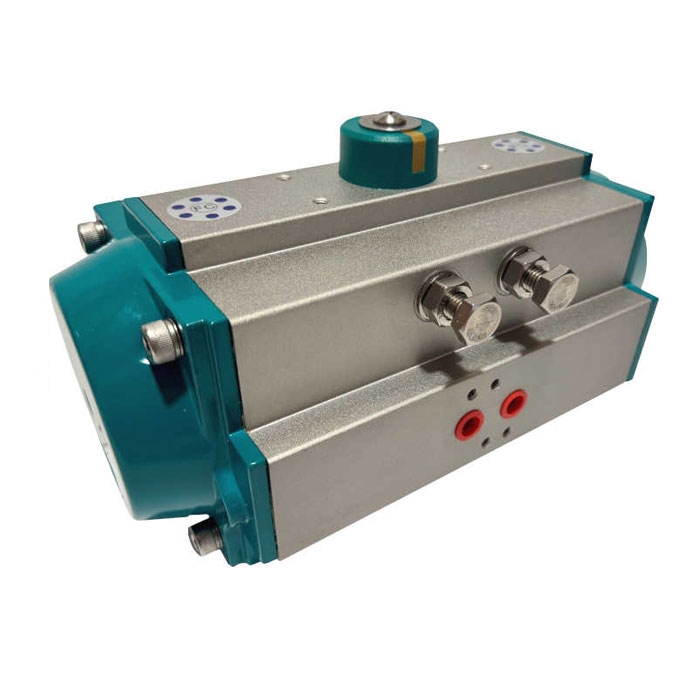

The JV-P range of rack-and-pinion pneumatic actuators is for quarter-turn applications involving ball valves, butterfly valves, plug valves, and dampers. These actuators can be configured as single (spring return) or double-acting, providing an extensive assortment of output torques to deliver a comprehensive valve automation solution.
Each actuator has travel stops for both the open and closed positions. Constructed from high-quality materials, these components are precision-engineered and lubricated to guarantee a prolonged service life of up to 1,000,000 operations.
| Type | Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting |
| Torque Range | Single Acting (Spring Return) 2.4Nm to 9665Nm • Double Acting 2.9Nm to 12502.2Nm |
| ISO 5211 Mountings | F03 • F05 • F07 • F10 • F12 • F14 • F16 • F25 |
| Casing Materials | Aluminium Alloy |
| Air Supply Pressure Range | 2.5 to 8 Bar |
| Air Connections | Namur VDI/VDE 3845 |
| Approvals | ATEX • CE• SIL3 |
 |
 |
 |
|||
| Download PDF Datasheet | ATEX Approved | SIL3 Safety Integrity Level 3 |
The JV-P range of rack-and-pinion pneumatic actuators is for quarter-turn applications involving ball valves, butterfly valves, plug valves, and dampers. These actuators can be configured as single (spring return) or double-acting, providing an extensive assortment of output torques to deliver a comprehensive valve automation solution.
Each actuator has travel stops for both the open and closed positions. Constructed from high-quality materials, these components are precision-engineered and lubricated to guarantee a prolonged service life of up to 1,000,000 operations.
| Type | Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting |
| Torque Range | Single Acting (Spring Return) 2.4Nm to 9665Nm • Double Acting 2.9Nm to 12502.2Nm |
| ISO 5211 Mountings | F03 • F05 • F07 • F10 • F12 • F14 • F16 • F25 |
| Casing Materials | Aluminium Alloy |
| Air Supply Pressure Range | 2.5 to 8 Bar |
| Air Connections | Namur VDI/VDE 3845 |
| Approvals | ATEX • CE• SIL3 |
