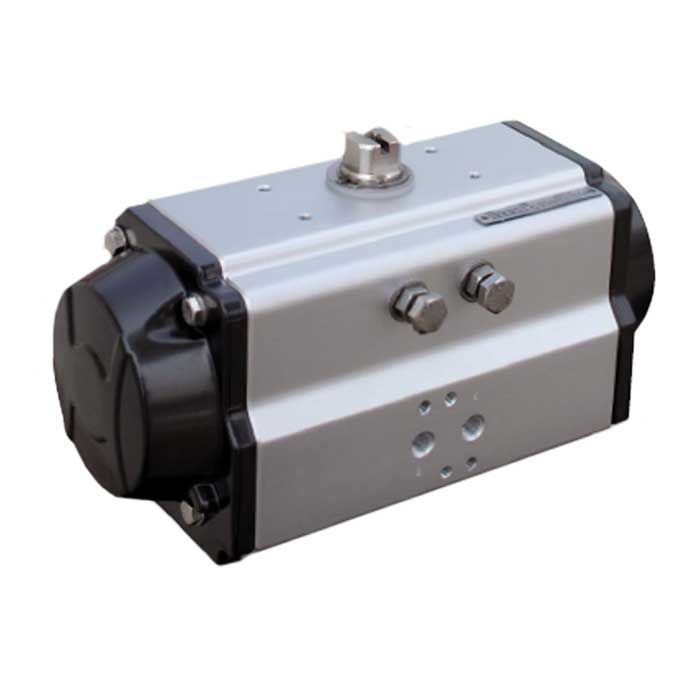

The HP range of rack and pinion pneumatic actuators is for quarter-turn applications involving ball, butterfly, plug valves, and dampers. These actuators can be configured as single (spring return) or double-acting, providing an extensive assortment of output torques to deliver a comprehensive valve automation solution.
Each actuator is equipped with travel stops for both the open and closed positions. Constructed from high-quality materials, these components are precision-engineered and lubricated to guarantee a prolonged service life of up to 1,000,000 operations.
| Type | Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting |
| Torque Range | Single Acting (Spring Return) 1.5Nm to 1878Nm • Double Acting 3.8Nm to 1525Nm |
| ISO 5211 Mountings | F03 • F05 • F07 • F10 • F12 • F14 |
| Casing Materials | Aluminium Alloy |
| Air Supply Pressure Range | 2.5 to 8 Bar |
| Air Connections | Namur VDI/VDE 3845 |
| Approvals | ATEX • CE• SIL3 |
 |
 |
 |
|||
| Download PDF Datasheet | ATEX Approved | SIL3 Safety Integrity Level 3 |
The HP range of rack and pinion pneumatic actuators is for quarter-turn applications involving ball, butterfly, plug valves, and dampers. These actuators can be configured as single (spring return) or double-acting, providing an extensive assortment of output torques to deliver a comprehensive valve automation solution.
Each actuator is equipped with travel stops for both the open and closed positions. Constructed from high-quality materials, these components are precision-engineered and lubricated to guarantee a prolonged service life of up to 1,000,000 operations.
| Type | Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting |
| Torque Range | Single Acting (Spring Return) 1.5Nm to 1878Nm • Double Acting 3.8Nm to 1525Nm |
| ISO 5211 Mountings | F03 • F05 • F07 • F10 • F12 • F14 |
| Casing Materials | Aluminium Alloy |
| Air Supply Pressure Range | 2.5 to 8 Bar |
| Air Connections | Namur VDI/VDE 3845 |
| Approvals | ATEX • CE• SIL3 |
| 90° Turn • Single & Double Acting |
| ISO Mounting F14 to F60 |
| Torque 2000Nm to 250000Nm |
| |
| 90° Turn • Single & Double Acting |
| ISO Mounting F03 to F25 |
| Torque 2.4Nm to 12502.2Nm |
| |
