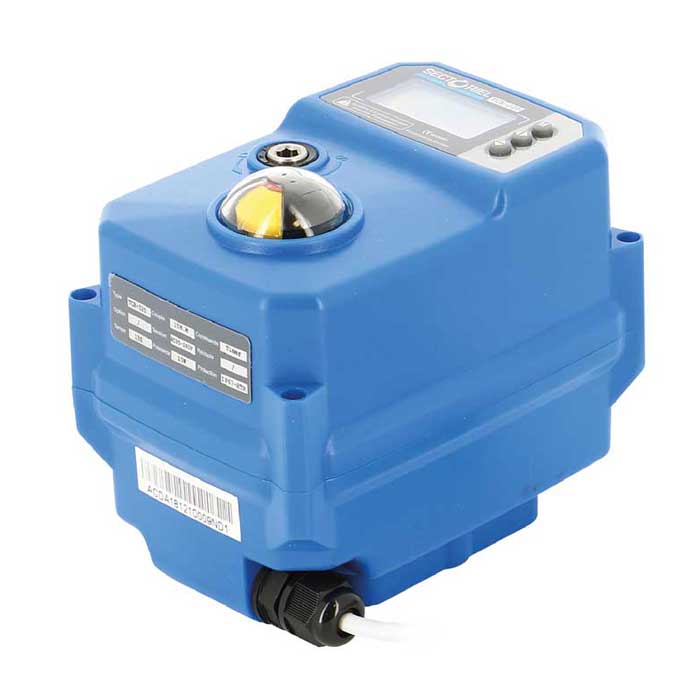

The JV241047 smart electric actuators are designed for quarter-turn applications on ball, butterfly, plug valves and dampers. Small, lightweight and compact in design but still offering high output torques. This range comes complete with a wide range of control options, along with various voltages to meet your requirements.
| Type | Electric • 90° Turn • Smart |
| Voltage Options | 24VAC/DC • 95 to 265VAC 1PH 50/60Hz |
| Torque Range22 | 20Nm & 400Nm |
| ISO 5211 Mountings | F03 • F05 • F07 • F10 |
| Casing Materials | ABS Plastic |
| Limit Switches | 2 x Adjustable Switches |
| Manual Override | Hexagon |
| Approvals | IP67 Rated |
 |
 |
||||
| Download PDF Datasheet | IP67 Rated Waterproof |
The JV241047 smart electric actuators are designed for quarter-turn applications on ball, butterfly, plug valves and dampers. Small, lightweight and compact in design but still offering high output torques. This range comes complete with a wide range of control options, along with various voltages to meet your requirements.
| Type | Electric • 90° Turn • Smart |
| Voltage Options | 24VAC/DC • 95 to 265VAC 1PH 50/60Hz |
| Torque Range | 20Nm & 400Nm |
| ISO 5211 Mountings | F03 • F05 • F07 • F10 |
| Casing Materials | ABS Plastic |
| Limit Switches | 2 x Adjustable Switches |
| Manual Override | Hexagon |
| Approvals | IP67 Rated |
| 90° Turn • Spring Return |
| F03 • F04 • F05 |
| Torque 20Nm |
 |
| 90° Turn • Spring Return |
| F05 • F07 • F10 • F12 |
| Torque 55Nm to 300Nm |
|
| 90° Turn • Scotch-Yoke |
| F03 • F05 • F07 • F10 • F12 • F14 • F16 |
| Torque 70Nm to 5000Nm |
 |
