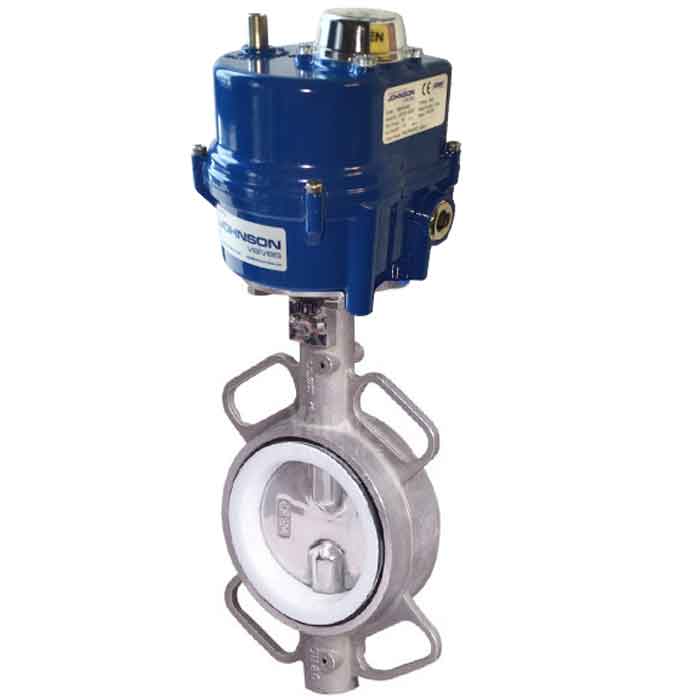

The JV240005 features a robust and durable stainless steel construction, ensuring longevity and reliability in various applications. Additionally, it boasts a disc that incorporates a standard PTFE liner known for its exceptional chemical resistance. Furthermore, for those with specific requirements, alternative materials such as EPDM or Viton are available upon request. This versatility and adaptability render the JV240005 valve an economical and highly effective choice for a diverse range of isolation applications across multiple industries. This valve is supplied and completely assembled with a JV-E electric actuator, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections* | DN50-DN100 (2″-8″) • PN6, 10 & 16 • ANSI 150 • BS10 D & E • JIS 10K |
| Valve Type | Wafer Multi-Flange Butterfly Valve • Length to EN558-1 Series 20 |
| Actuator Type | Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type) |
| Actuator Voltages | 24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • Stainless Steel Disc • PTFE Liner (EPDM & Viton on request) |
| Applications | Air • Gas • Oil • Process • Seawater • Waste Water |
| Pressure & Temperature* | 16 Bar • -10°C to 120°C |
| Approvals | IP68 Rated** |
*Dependent on size, pressure & temperature – see datasheet **Actuator only
 |
 |
||||
| Download PDF Datasheet | IP68 Rated Waterproof |
The JV240005 features a robust and durable stainless steel construction, ensuring longevity and reliability in various applications. Additionally, it boasts a disc that incorporates a standard PTFE liner known for its exceptional chemical resistance. Furthermore, for those with specific requirements, alternative materials such as EPDM or Viton are available upon request. This versatility and adaptability render the JV240005 valve an economical and highly effective choice for a diverse range of isolation applications across multiple industries. This valve is supplied and completely assembled with a JV-E electric actuator, which is small, lightweight, and compact in design but still offers high-output torques.
All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.
| Size & Connections | DN50-DN100 (2″-8″) • PN6, 10 & 16 • ANSI 150 • BS10 D & E • JIS 10K |
| Valve Type | Wafer Multi-Flange Butterfly Valve • Length to EN558-1 Series 20 |
| Actuator Type | Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type) |
| Actuator Voltages | 24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase) |
| Valve Materials | Stainless Steel Body • Stainless Steel Disc • PTFE Liner (EPDM & Viton on request) |
| Applications | Air • Gas • Oil • Process • Seawater • Waste Water |
| Pressure & Temperature* | 16 Bar • -10°C to 120°C |
| Approvals | IP68 Rated** |
*Dependent on size, pressure & temperature – see datasheet **Actuator only
JV240005 Electrically Actuated Wafer Flanged Butterfly Valve – PTFE Lined Datasheet (PDF)
