JV240026

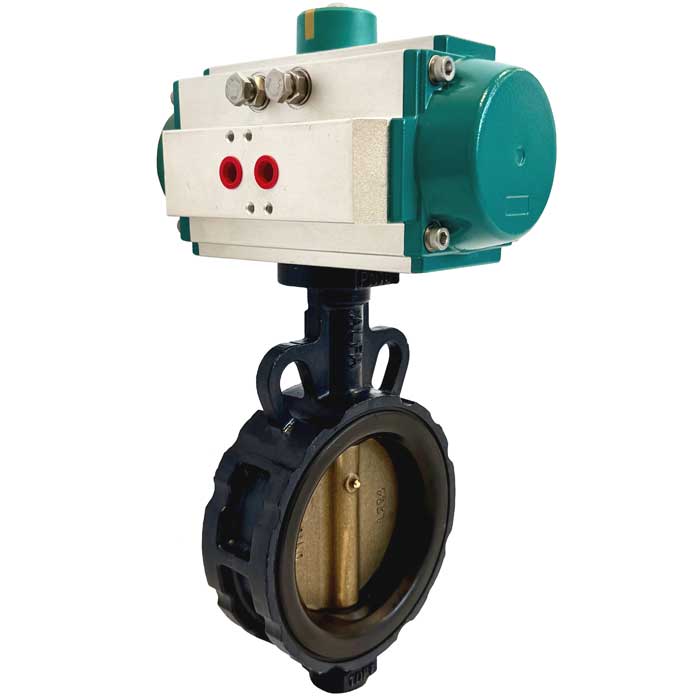

Pneumatically Actuated Wafer Butterfly Valve – NBR Lined

The JV240026 valve represents an exceptional blend of economy and robustness, featuring a durable NBR liner engineered for an extended lifespan with minimal maintenance needs. This valve is ideally suited for diverse applications where weight and space efficiency are paramount. This valve is supplied completely assembled with either a single (spring return) or double acting JV-P pneumatic actuator.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections*	DN40-DN1200 (1½”-48″) • PN6, 10, 25 & 16 • ANSI 150 • BS 10 D & E • JIS 5K
Valve Type	Wafer Multi-Flange Butterfly Valve • Length to EN558-1 Series 20
Actuator Type	Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting
Air Supply Range	2.5 to 8 Bar
Valve Materials	Ductile Iron Body • Ali-Bronze Disc • NBR Bonded Liner
Applications	Air • Gas • Oil • Process • Sea Water • Waste Water
Pressure & Temperature*	16 Bar • -15°C to 80°C
Approvals	Lloyds, DNV & ABS Type Approval • 3.1 & 3.2 Certs (on request) • ATEX Approved* • SIL3*

*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only


Download PDF Datasheet	3.1 & 3.2 Certs (on request)	LR Type Approved Valve	DNV Type Approved Valve	ABS Type Approved Valve	ATEX Approved	SIL3 Safety Integrity Level 3
