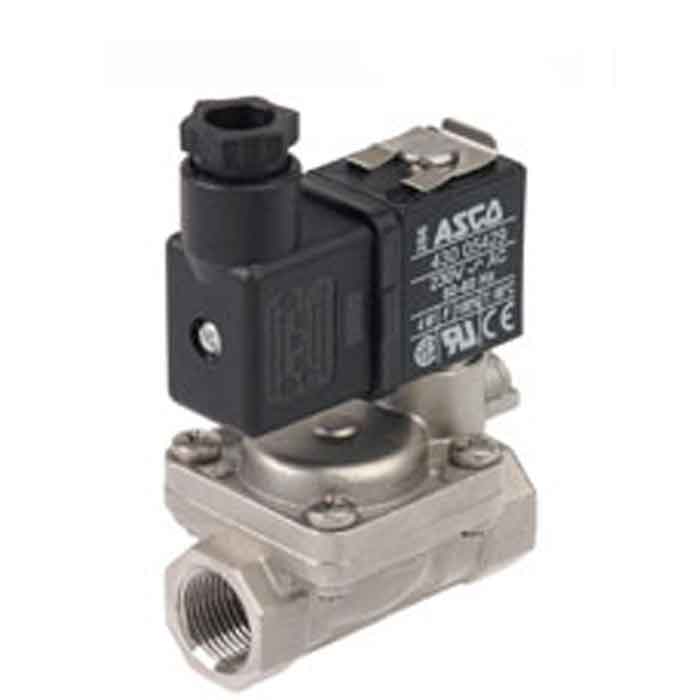

ASCO 238SS
Stainless Steel Solenoid Valve – Normally Closed/Open

The Asco 238SS stainless steel solenoid valve is manufactured by Asco to meet the highest standards. It features a pilot-operated mechanism with a floating diaphragm, requiring a minimum pressure for operation. It is equipped with FPM seals and gaskets with the option of EPDM, making it suitable for a wide range of applications that are compatible with the valve materials. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energization, ensuring efficiency and reliability in its performance during operation.

Size & Connections	10mm to 25mm (3/8″-1″) • Screwed BSP Female (NPT on request)
Valve Type	Solenoid Operated • 2/2 Normally Closed • Pilot Operated – Hung Diaphragm (no min pressure required)
Solenoid Voltages	24VAC/DC • 48VAC/DC • 115VAC • 230VAC
Valve Materials	Stainless Steel Body & Internals • FPM Seals (EPDM option)
Applications	General Purpose
Pressure & Temperature*	0.35 to 12 Bar • -20°C to 85°C
Approvals	IP65 Rated • ATEX Coil (on request) • IEC 335
Part Numbers N/C	SCG238C101V • SCG238C102V • SCG238C103V • SCG238C104V
Part Numbers N/O	SCG238C105V • SCG238C106V • SCG238C107V • SCG238C108V

*Dependent on size, pressure & temperature – see datasheet


Download PDF Datasheet	Manufactured by ASCO	IP65 Rated Waterproof	ATEX Rated Coil (on request)
