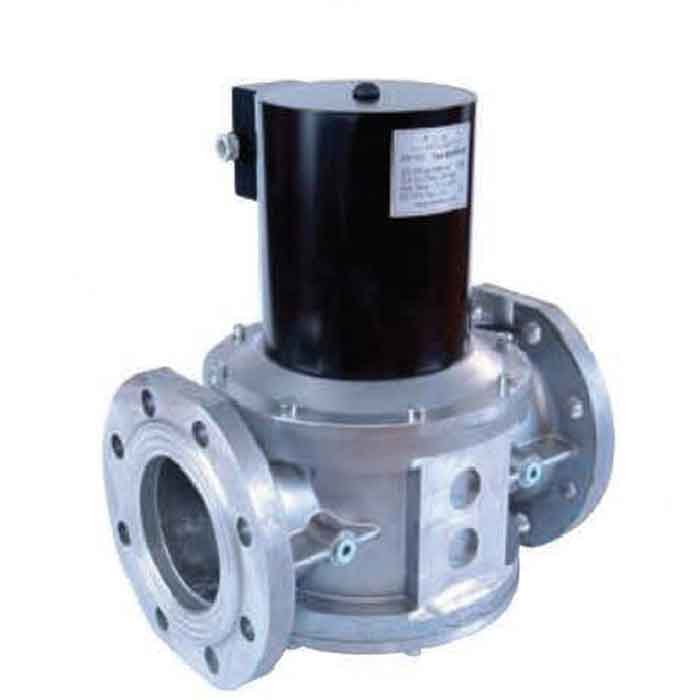

The JV230002 is a Class “A” gas solenoid valve that has been designed for use in a variety of applications, including gas power burners, atmospheric gas boilers, industrial ovens, and numerous other gas-consuming appliances. This robust valve not only features an integrated mesh filter to ensure optimal performance by trapping unwanted particles, but it also includes strategically placed test point connections on both the inlet and outlet. These connections allow for easy integration with CPI switches, pressure gauges, and various other monitoring devices, making the JV230002 an excellent choice for enhancing the safety and efficiency of gas systems in a wide range of industrial and commercial settings. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energisation, ensuring efficiency and reliability in its performance during operation.
| Size & Connections | DN65 to DN200 (2½″-8″) • Flanged PN16 |
| Valve Type | Solenoid Operated • 2/2 NO (normally open) • Direct Acting (no minimum pressure required) |
| Solenoid Voltages | 12VDC • 24VAC/DC • 110VAC • 230VAC (50/60 Hz) |
| Valve Materials | Die-cast Aluminium Body (DN65-DN100) • Steel Body (DN125-DN200) • Stainless Steel Internals • NBR Seals |
| Applications | Natural Gas • LPG • Propane |
| Pressure & Temperature | 0 to 360 mbar • Ambient: -15°C to 60°C • Coil: 70°C (approx.) |
| Approvals | Class “A” BS EN161:2013 • 90/396/EEC – 73/23/EEC – 89/336/EEC • IP54 Rated (IP65 option) |
 |
 |
 |
|||
| Download PDF Datasheet | IP54 Rated Waterproof | Suitable For Gas Service |
The JV230002 is a Class “A” gas solenoid valve that has been designed for use in a variety of applications, including gas power burners, atmospheric gas boilers, industrial ovens, and numerous other gas-consuming appliances. This robust valve not only features an integrated mesh filter to ensure optimal performance by trapping unwanted particles, but it also includes strategically placed test point connections on both the inlet and outlet. These connections allow for easy integration with CPI switches, pressure gauges, and various other monitoring devices, making the JV230002 an excellent choice for enhancing the safety and efficiency of gas systems in a wide range of industrial and commercial settings. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energisation, ensuring efficiency and reliability in its performance during operation.
| Size & Connections | DN65 to DN200 (2½″-8″) • Flanged PN16 |
| Valve Type | Solenoid Operated • 2/2 NO (normally open) • Direct Acting (no minimum pressure required) |
| Solenoid Voltages | 12VDC • 24VAC/DC • 110VAC • 230VAC (50/60 Hz) |
| Valve Materials | Die-cast Aluminium Body (DN65-DN100) • Steel Body (DN125-DN200) • Stainless Steel Internals • NBR Seals |
| Applications | Natural Gas • LPG • Propane |
| Pressure & Temperature | 0 to 360 mbar • Ambient: -15°C to 60°C • Coil: 70°C (approx.) |
| Approvals | Class “A” BS EN161:2013 • 90/396/EEC – 73/23/EEC – 89/336/EEC • IP54 Rated (IP65 option) |
JV230002 Gas Service Solenoid Valve – Normally Closed Datasheet (PDF)
