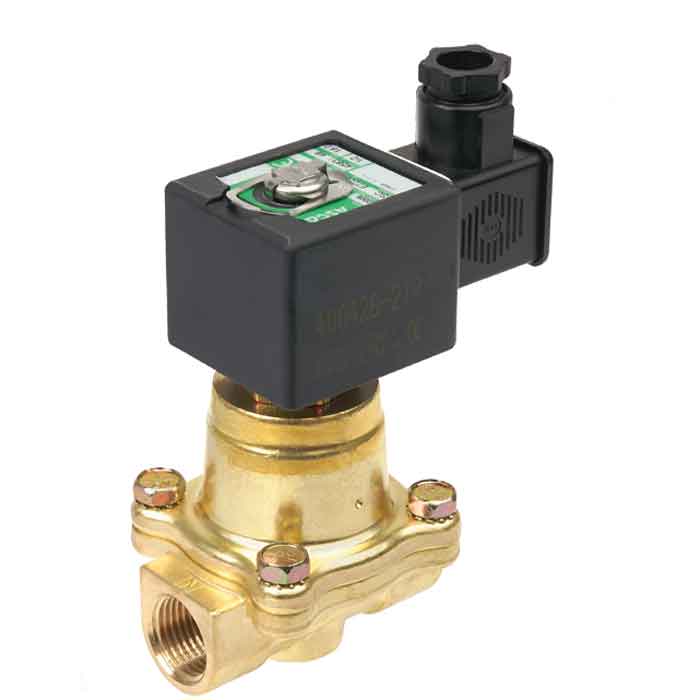

ASCO 222
High Temperature Solenoid Valve – Normally Closed

The Asco 222 high-temperature solenoid valve is manufactured by Asco to adhere to the highest industry standards in the field of valve technology. It features a pilot-operated mechanism with a hung piston, allowing for operation at zero bar pressure that requires no external pressure for its efficient operation. Additionally, it features PTFE seals specifically designed to withstand high-temperature environments, making it ideal for various demanding applications, including steam and hot water processes. The careful engineering of the Asco 222 ensures reliability and longevity, which are crucial in industrial applications where precision and durability are paramount. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energisation, ensuring efficiency and reliability during operation.

Size & Connections	10mm to 20mm (3/8″-3/4″) • Screwed BSP Female (NPT on request)
Valve Type	Solenoid Operated • 2/2 Normally Closed• Pilot Operated – Hung Piston (no minimum pressure )
Solenoid Voltages	24VAC • 115VAC • 230VAC
Valve Materials	Brass Body, Piston & Seat • PTFE Seals
Applications	Air • Hot Water • Light Oil • Steam • Water
Pressure & Temperature*	0 to 9 Bar • -20°C to 184°C
Approvals	IP65 Rated • IEC 335
Part Numbers	SCE222D001 • SCE222D002 • SCE222E003

*Dependent on coil, size, pressure & temperature – see datasheet


Download PDF Datasheet	Manufactured by ASCO	IP65 Rated Waterproof
