JV240024

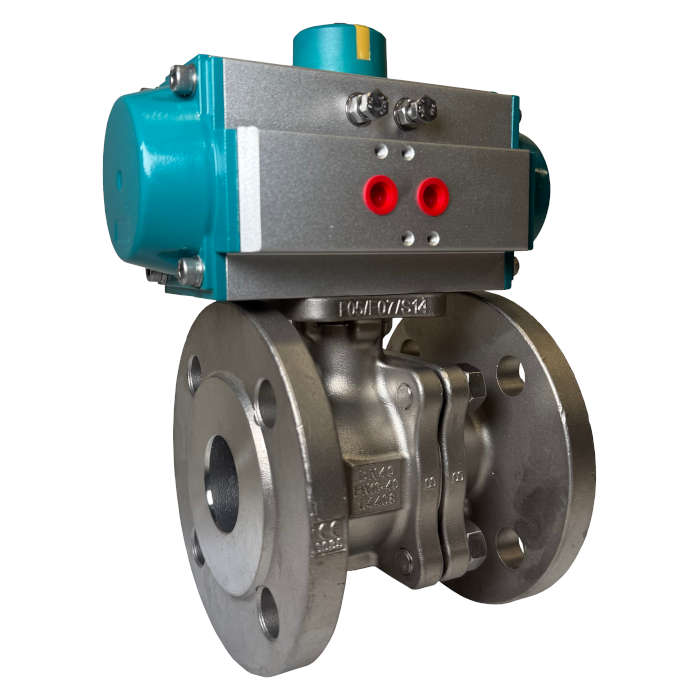

Pneumatically Actuated Two Piece Stainless Steel Ball Valve – DIN

The JV240024 stainless steel full-bore, two-piece ball valve complies with DIN standards, ensuring compatibility with both PN16 and PN40 flange specifications. This design and specification make it suitable for a wide range of applications across various industries, making it an ideal choice for reliability and performance in fluid control systems. This valve is supplied completely assembled with either a single (spring return) or double-acting JV-P pneumatic actuator.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections	DN15-DN200 (1/2″-8″) • Flanged PN16/40
Valve Type	Two Piece Full Bore Ball Valve
Actuator Type	Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting
Air Supply Range	2.5 to 8 Bar
Valve Materials	Stainless Steel Body • PTFE Seat • Stainless Steel Ball
Applications	Air • Gas • Oil • Steam • Water
Pressure & Temperature*	16 Bar • -25°C to 120°C
Approvals	Face to face: DIN 3202 F4, EN 558-1-27 • ATEX Approved • SIL3 Safety Integrity Level 3

*Dependent on size, pressure & temperature – see datasheet **Actuator only


Download PDF Datasheet	ATEX Approved	SIL3 Safety Integrity Level 3
