JV240014

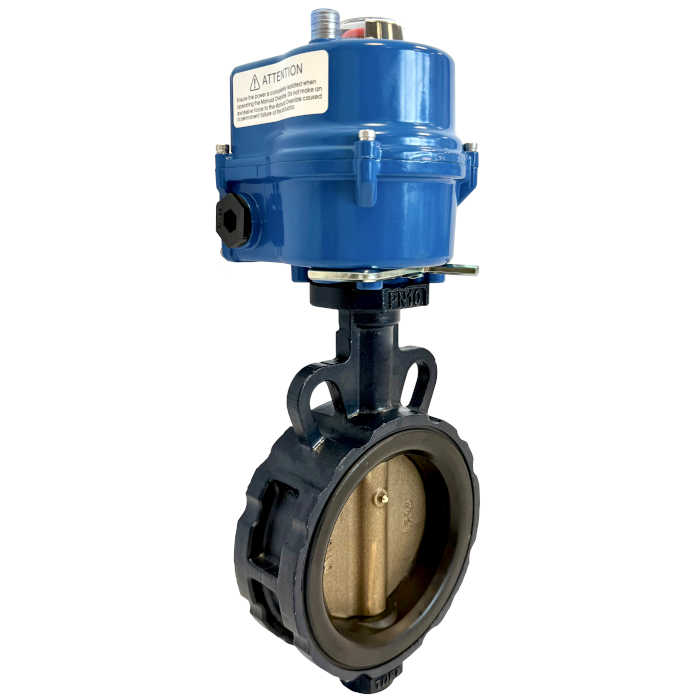

Electrically Actuated Wafer Butterfly Valve – NBR Lined

The JV240014 valve represents an exceptional blend of economy and robustness, featuring a durable NBR liner engineered for an extended lifespan with minimal maintenance needs. This valve is ideally suited for diverse applications where weight and space efficiency are paramount. This valve is supplied and completely assembled with a JV-E electric actuator, which is small, lightweight, and compact in design but still offers high-output torques.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections*	DN40-DN1200 (1½”-48″) • PN6, 10, 25 & 16 • ANSI 150 • BS 10 D & E • JIS 5K
Valve Type	Wafer Multi-Flange Butterfly Valve • Length to EN558-1 Series 20
Actuator Type	Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type)
Actuator Voltages	24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase)
Valve Materials	Ductile Iron Body • Ali-Bronze Disc • NBR Bonded Liner
Applications	Air • Gas • Oil • Process • Seawater • Waste Water
Pressure & Temperature*	16 Bar • -15°C to 80°C
Approvals	Lloyds, DNV & ABS Type Approval • 3.1 & 3.2 Certs (on request) • IP68 Rated***

*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only


Download PDF Datasheet	3.1 & 3.2 Certs (on request)	LR Type Approved Valve	DNV Type Approved Valve	ABS Type Approved Valve	ATEX Approved
