JV240027

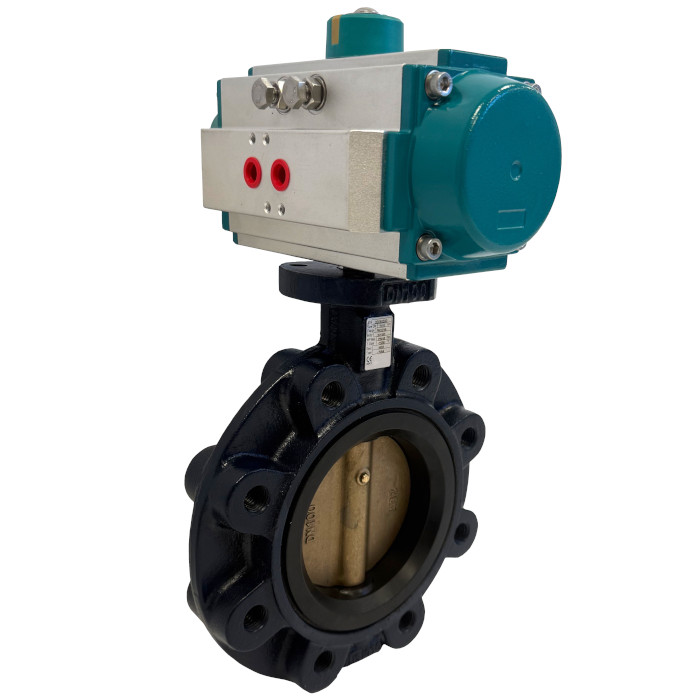

Pneumatically Actuated Lugged Butterfly Valve – NBR Lined

The JV240027 valve combines cost-effectiveness with durability, featuring a robust NBR liner designed for longevity and minimal maintenance requirements. This valve is designed for a wide range of applications, particularly in scenarios requiring flanged connections and where space efficiency is crucial. Its reliable construction not only enhances its longevity but also ensures superior functionality across various operating conditions, making it the preferred choice for industries seeking both value and reliability. This valve is supplied completely assembled with either a single (spring return) or double-acting JV-P pneumatic actuator.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections*	DN40-DN300 (1½”-12″) • PN10/16 (ANSI 150 & JIS 5/10K on request)
Valve Type	Lugged & Tapped Butterfly Valve • Length to EN558-1 Series 20
Actuator Type	Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting
Air Supply Range	2.5 to 8 Bar
Valve Materials	Ductile Iron Body • Ali-Bronze Disc • NBR Bonded Liner (EPDM or Viton on request)
Applications	Air • Gas • Oil • Process • Sea Water • Waste Water
Pressure & Temperature*	16 Bar • -15°C to 80°C
Approvals	Lloyds, DNV & ABS Type Approval • 3.1 & 3.2 Certs (on request) • ATEX Approved* • SIL3*

*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only


Download PDF Datasheet	3.1 & 3.2 Certs (on request)	LR Type Approved Valve	DNV Type Approved Valve	ABS Type Approved Valve	ATEX Approved	SIL3 Safety Integrity Level 3

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections*	DN40-DN300 (1½”-12″) • PN10/16 (ANSI 150 & JIS 5/10K on request)
Valve Type	Mono Flanged Butterfly Valve • Length to EN558-1 Series 20
Actuator Type	Pneumatic • 90° Turn • Rack & Pinion • Single Acting (Spring Return) • Double Acting
Air Supply Range	2.5 to 8 Bar
Valve Materials	Ductile Iron Body • Ali-Bronze Disc • NBR Bonded Liner (EPDM or Viton on request)
Applications	Air • Gas • Oil • Process • Sea Water • Waste Water
Pressure & Temperature*	16 Bar • -15°C to 80°C
Approvals	Lloyds, DNV & ABS Type Approval • 3.1 & 3.2 Certs (on request) • ATEX Approved* • SIL3*
