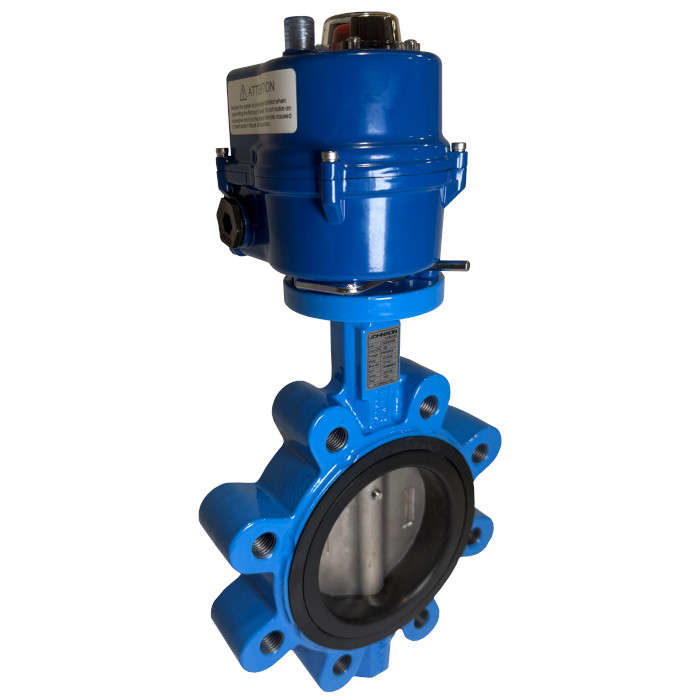

JV240003
Electrically Actuated Lugged Butterfly Valve – EPDM Lined

The JV240003 is designed as a highly dependable valve, featuring WRAS approval for use in potable water applications and other similar duties. Constructed with an EPDM liner, it offers durability and minimises maintenance requirements. Furthermore, the self-lubricating bearings ensure optimal guidance, facilitating smooth rotation of the shaft and significantly reducing the risks of seizure and premature wear during prolonged use. This valve is supplied and completely assembled with a JV-E electric actuator, which is small, lightweight, and compact in design but still offers high-output torques.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections	DN25-DN300 (1″-12″) • PN16
Valve Type	Lugged & Tapped Butterfly Valve • Length to EN558-1 Series 20
Actuator Type	Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type)
Actuator Voltages	24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase)
Valve Materials	Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Applications	Potable (Drinking) Water
Pressure & Temperature*	10/16 Bar • -10°C to 120°C
Approvals	WRAS (CBF10-TA03/L9 Range) • IP68 Rated*

*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only


Download PDF Datasheet	IP68 Rated Waterproof	WRAS Approved Valve
