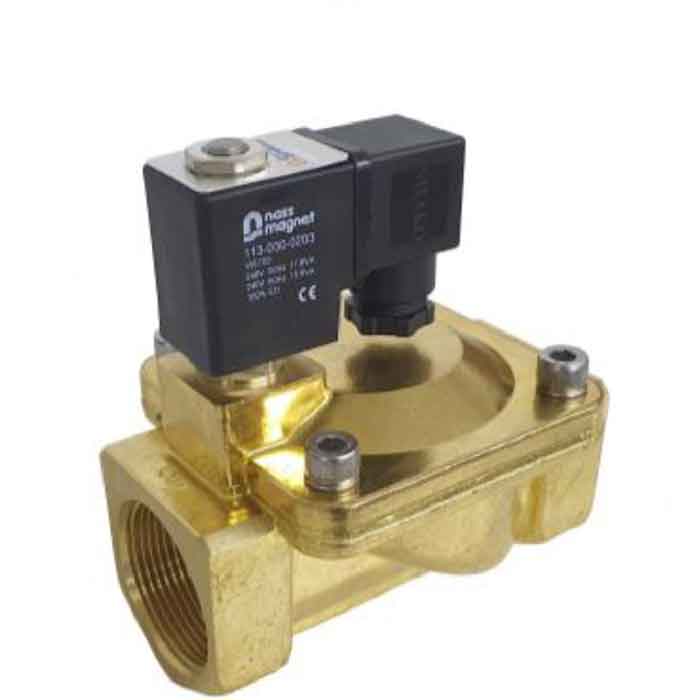

The JV230006 is a servo-assisted solenoid valve requiring a minimum pressure to operate and is designed for a wide range of general applications, making it suitable for use with air, water, and light oils that have viscosities of up to 50 centistokes. This versatile valve is equipped with standard NBR seals and gaskets, but there are also various options available for different materials, including EPDM, FKM, and HNBR, which can be requested depending on your specific needs and requirements. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energisation, ensuring efficiency and reliability in its performance during operation.
| Size & Connections | 10mm to 80mm (3/8″-3″) • Screwed BSP Female (NPT on request, not 2½ & 3″) |
| Valve Type | Solenoid Operated • 2/2 NO (normally open) • Servo Assited (minimum pressure required) |
| Solenoid Voltages | 12VAC/DC • 24VAC/DC • 48VDC • 110VAC/DC • 220VDC • 230VAC • 380VAC (50/60 Hz) |
| Valve Materials | Brass Body • Stainless Steel Internals • NBR Seals (EPDM, FKM & HNBR on request) |
| Applications | Air • Light Oil • Water |
| Pressure & Temperature* | 0 to 12 Bar • NBR: 0°C to 80°C • EPDM: 0°C to 160°C • FKM: 0°C to 130°C |
| Approvals | IP65 Rated (with connector) • ATEX Coil (on request) – ATEX II 2 G/D EExdIICT6 IP65 +85°C |
*Dependent on size, coil, pressure & temperature – see datasheet
 |
 |
 |
|||
| Download PDF Datasheet | IP65 Rated Waterproof | ATEX Rated Coil (on request) |
The JV230006 is a servo-assisted solenoid valve requiring a minimum pressure to operate and is designed for a wide range of general applications, making it suitable for use with air, water, and light oils that have viscosities of up to 50 centistokes. This versatile valve is equipped with standard NBR seals and gaskets, but there are also various options available for different materials, including EPDM, FKM, and HNBR, which can be requested depending on your specific needs and requirements. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energisation, ensuring efficiency and reliability in its performance during operation.
| Size & Connections | 10mm to 80mm (3/8″-3″) • Screwed BSP Female (NPT on request, not 2½ & 3″) |
| Valve Type | Solenoid Operated • 2/2 NO (normally open) • Servo Assited (minimum pressure required) |
| Solenoid Voltages | 12VAC/DC • 24VAC/DC • 48VDC • 110VAC/DC • 220VDC • 230VAC • 380VAC (50/60 Hz) |
| Valve Materials | Brass Body • Stainless Steel Internals • NBR Seals (EPDM, FKM & HNBR on request) |
| Applications | Air • Light Oil • Water |
| Pressure & Temperature* | 0 to 12 Bar • NBR: 0°C to 80°C • EPDM: 0°C to 160°C • FKM: 0°C to 130°C |
| Approvals | IP65 Rated (with connector) • ATEX Coil (on request) – ATEX II 2 G/D EExdIICT6 IP65 +85°C |
*Dependent on size, coil, pressure & temperature – see datasheet
