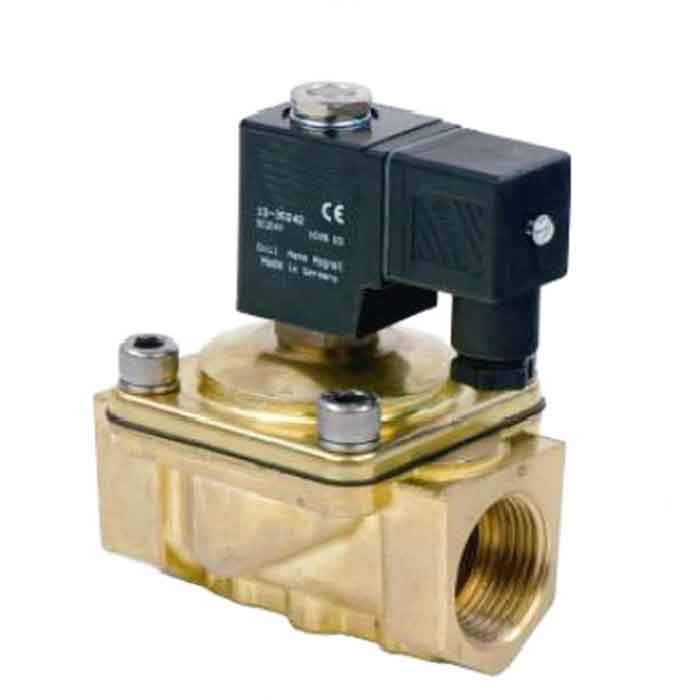

The JV230004 is a direct-acting solenoid valve requiring no minimum pressure to operate and is designed for a wide range of general applications up to 16 Bar pressure, making it suitable for use with air, water, and light oils that have viscosities of up to 50 centistokes. This versatile valve is equipped with standard NBR seals and gaskets, but there are also various options available for different materials, including EPDM, FKM, and HNBR, which can be requested depending on your specific needs and requirements. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energisation, ensuring efficiency and reliability in its performance during operation.
| Size & Connections | 10mm to 50mm (3/8″-2″) • Screwed BSP Female (NPT on request) |
| Valve Type | Solenoid Operated • 2/2 NO (normally open) • Direct Acting (no minimum pressure required) |
| Solenoid Voltages | 12VAC/DC • 24VAC/DC • 48VDC • 110VAC/DC • 220VDC • 230VAC • 380VAC (50/60 Hz) |
| Valve Materials | Brass Body • Stainless Steel Internals • NBR Seals (EPDM, FKM on request) |
| Applications | Air • Light Oil • Water |
| Pressure & Temperature* | 0 to 16 Bar • NBR: 0°C to 80°C • EPDM: 0°C to 150°C • FKM: 0°C to 120°C |
| Approvals | IP65 Rated (with connector) • ATEX Coil (on request) – EExmlIIT4 II 2G & 2D IP65 T130°C (Max. 3 bar) |
*Dependent on size, coil, pressure & temperature – see datasheet
 |
 |
 |
|||
| Download PDF Datasheet | IP65 Rated Waterproof | ATEX Rated Coil (on request) |
The JV230004 is a direct-acting solenoid valve requiring no minimum pressure to operate and is designed for a wide range of general applications up to 16 Bar pressure, making it suitable for use with air, water, and light oils that have viscosities of up to 50 centistokes. This versatile valve is equipped with standard NBR seals and gaskets, but there are also various options available for different materials, including EPDM, FKM, and HNBR, which can be requested depending on your specific needs and requirements. Operating as a two-way valve, it functions in a normally closed configuration and opens upon energisation, ensuring efficiency and reliability in its performance during operation.
| Size & Connections | 10mm to 50mm (3/8″-2″) • Screwed BSP Female (NPT on request) |
| Valve Type | Solenoid Operated • 2/2 NO (normally open) • Direct Acting (no minimum pressure required) |
| Solenoid Voltages | 12VAC/DC • 24VAC/DC • 48VDC • 110VAC/DC • 220VDC • 230VAC • 380VAC (50/60 Hz) |
| Valve Materials | Brass Body • Stainless Steel Internals • NBR Seals (EPDM, FKM on request) |
| Applications | Air • Light Oil • Water |
| Pressure & Temperature* | 0 to 16 Bar • NBR: 0°C to 80°C • EPDM: 0°C to 150°C • FKM: 0°C to 120°C |
| Approvals | IP65 Rated (with connector) • ATEX Coil (on request) – EExmlIIT4 II 2G & 2D IP65 T130°C (Max. 3 bar) |
*Dependent on size, coil, pressure & temperature – see datasheet
JV230004 General Purpose Solenoid Valve – Normally Closed Datasheet (PDF)
