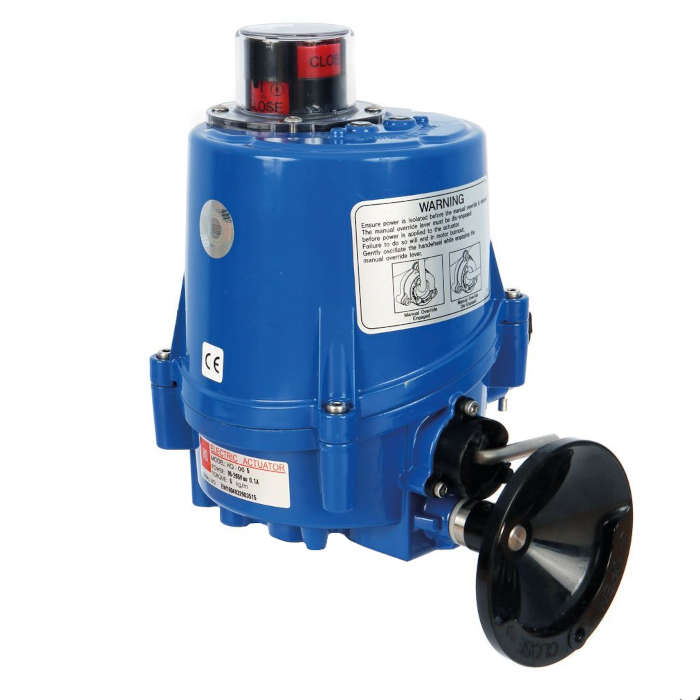

The HQ005 electric actuator is engineered for part quarter-turn applications involving ball, butterfly, and plug valves, as well as dampers. Rugged in design, they deliver high output torques. A variety of control options and an extensive selection of voltages are available to meet your specifications. The integration of high-quality electrical components and alloy gearing guarantees exceptional reliability and an extended lifespan.
| Type | Electric • 90° Turn |
| Voltage Options | 24VDC ± 10% • 110/220VAC 1PH 50/60Hz |
| Torque Range | 50Nm |
| ISO 5211 Mountings | F03 • F05 • F07 |
| Casing Materials | Aluminium Alloy, Dry Power Polyester Coated |
| Limit Switches | 2 x Open/Close, SPDT, 250VAC 10A Rating |
| Manual Override | Declutchable Handwheel |
| Approvals | IP67 Rated (IP68 on request) |
 |
 |
||||
| Download PDF Datasheet | IP67 Rated Waterproof |
The HQ005 electric actuator is engineered for part quarter-turn applications involving ball, butterfly, and plug valves, as well as dampers. Rugged in design, they deliver high output torques. A variety of control options and an extensive selection of voltages are available to meet your specifications. The integration of high-quality electrical components and alloy gearing guarantees exceptional reliability and an extended lifespan.
| Type | Electric • 90° Turn |
| Voltage Options | 24VDC ± 10% • 110/220VAC 1PH 50/60Hz |
| Torque Range | 50Nm |
| ISO 5211 Mountings | F03 • F05 • F07 |
| Casing Materials | Aluminium Alloy, Dry Power Polyester Coated |
| Limit Switches | 2 x Open/Close, SPDT, 250VAC 10A Rating |
| Manual Override | Declutchable Handwheel |
| Approvals | IP67 Rated (IP68 on request) |
| 90° Turn • Scotch-Yoke |
| F03 • F05 • F07 • F10 • F12 • F14 |
| Torque 20Nm to 1200Nm |
 |
| 90° Turn |
| F07 • F10 • F12 • F14 • F16 |
| Torque 80Nm to 3000Nm |
|
| 90° Turn • Scotch-Yoke |
| F03 • F05 • F07 • F10 • F12 • F14 • F16 |
| Torque 70Nm to 5000Nm |
 |
