JV241049

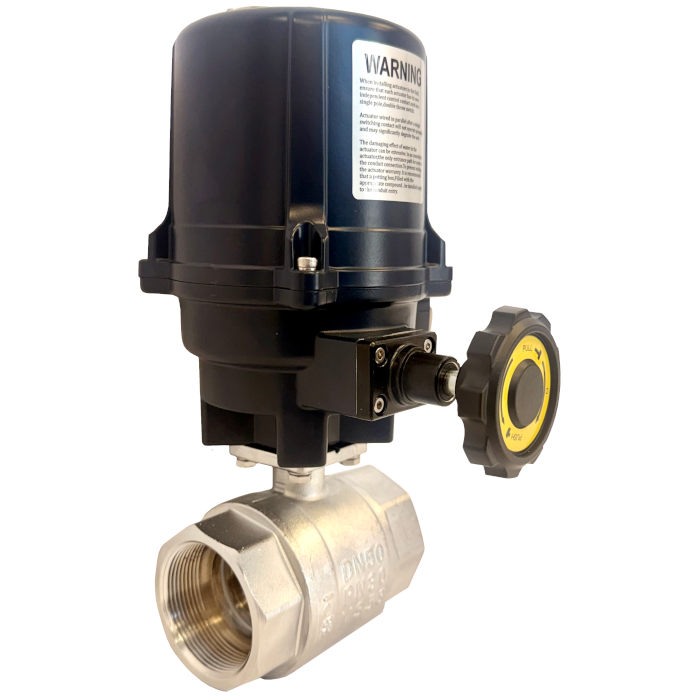

Electrically Actuated Nickel Plated Brass Ball Valve

The JV241049 is a WRAS-approved brass-bodied full-bore ball valve engineered for various applications, ensuring optimal performance and reliability across various industrial systems. This valve is supplied and completely assembled with a JV-M electric actuator with a gearbox manual override, which is small, lightweight, and compact in design but still offers high-output torques.

All valve and actuator packages are tested and, on request, can be issued with certification confirming the actuators’ functionality before despatch.

Size & Connections	6mm-80mm (1/4″-3″) • Screwed BSPP Female
Valve Type	2 Piece Full Bore Ball Valve
Actuator Type	Electric • 1/4 Turn • Exd • Manual Gearbox Override
Actuator Voltages	24VDC • 110 & 220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (3-phase)
Valve Materials	Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Applications	Air • Gas • Oil • Water
Pressure & Temperature*	40 Bar • -20°C to 120°C
Approvals	WRAS (R160 Range) • Exd IP67 Enclosure*

*Dependent on size, pressure & temperature – see datasheet **Valve only ***Actuator only


Download PDF Datasheet	IP67 Rated Waterproof	Exd Approved Actuator	WRAS Approved Valve
