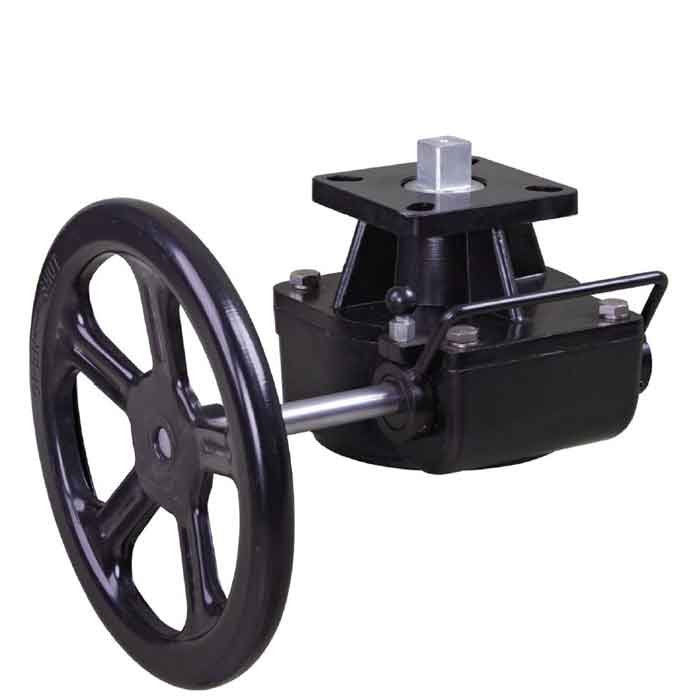

The JV241010 worm gear gearbox is engineered to be installed between a valve and a pneumatic actuator, facilitating manual operation of the valve in instances where the control air supply is compromised. The gearbox is equipped with an ISO 5211 interface, and its body is constructed from high-quality aluminium alloy.
| Type | De-Clutchable Gearbox • Manual Override |
| ISO 5211 Mountings | F05 • F07 • F10 • F12 • F14 • F16 • F20 • F25 |
| Input Torque | 50Nm to 200Nm |
| Output Torque | 100Nm to 6000Nm |
| Body Material | Aluminium Alloy |
 |
|||||
| Download PDF Datasheet |
The JV241010 worm gear gearbox is engineered to be installed between a valve and a pneumatic actuator, facilitating manual operation of the valve in instances where the control air supply is compromised. The gearbox is equipped with an ISO 5211 interface, and its body is constructed from high-quality aluminium alloy.
| Type | De-Clutchable Gearbox • Manual Override |
| ISO 5211 Mountings | F05 • F07 • F10 • F12 • F14 • F16 • F20 • F25 |
| Input Torque | 50Nm to 200Nm |
| Output Torque | 100Nm to 6000Nm |
| Body Material | Aluminium Alloy |
JV241010 De-Clutchable Gearbox with Manual Override Datasheet (PDF)
