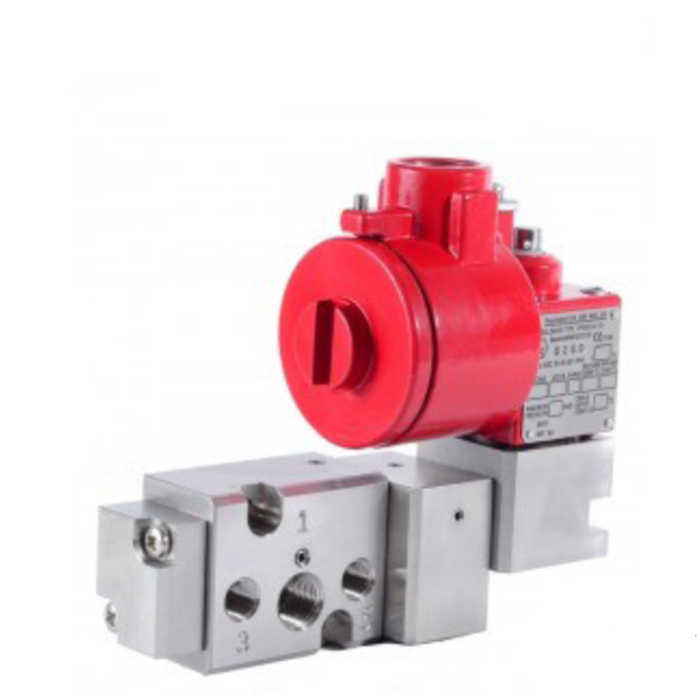

The JV231001-EXD solenoid-operated spool valve is a highly versatile and efficient component that features threaded port connections and a NAMUR interface. This design allows for seamless adaptation to various configurations, specifically a 3/2 function, which is ideal for the effective operation of a spring-return single-acting actuator. Alternatively, the valve can be easily configured to a 5/2 function, providing optimal control for a double-acting actuator. With its ATEX certification, the JV231001-EXD is ideally suited for a wide range of applications requiring explosion-proof capabilities.
| Size & Connections | ¼” BSP or NPT Ports • NAMUR Interface |
| Valve Type | Solenoid Operated • Universal Direct Mount • 5/2 – 3/2 interchangeable |
| Solenoid Voltages | 24VDC • 110VAC (50/60 Hz) • 230VAC (50/60 Hz) |
| Valve Materials | Black Anodised Aluminium (Dural) Body • Hard Anodised Aluminium PTFE Impregnated Spool • Nitrile O-rings |
| Applications | Air • Pneumatic Control |
| Pressure & Temperature | 3 to 8 Bar • -20°C to +80°C |
| Approvals | ATEX Exd IIC T3-T6 Gb Zones 1 & 2 • IP66 Rated |
 |
 |
 |
|||
| Download PDF Datasheet | ATEX Rated |
IP66 Rated Waterproof |
The JV231001-EXD solenoid-operated spool valve is a highly versatile and efficient component that features threaded port connections and a NAMUR interface. This design allows for seamless adaptation to various configurations, specifically a 3/2 function, which is ideal for the effective operation of a spring-return single-acting actuator. Alternatively, the valve can be easily configured to a 5/2 function, providing optimal control for a double-acting actuator. With its ATEX certification, the JV231001-EXD is ideally suited for a wide range of applications requiring explosion-proof capabilities.
| Size & Connections | ¼” BSP or NPT Ports • NAMUR Interface |
| Valve Type | Solenoid Operated • Universal Direct Mount • 5/2 – 3/2 interchangeable |
| Solenoid Voltages | 24VDC • 110VAC (50/60 Hz) • 230VAC (50/60 Hz) |
| Valve Materials | Black Anodised Aluminium (Dural) Body • Hard Anodised Aluminium PTFE Impregnated Spool • Nitrile O-rings |
| Applications | Air • Pneumatic Control |
| Pressure & Temperature | 3 to 8 Bar • -20°C to +80°C |
| Approvals | ATEX Exd IIC T3-T6 Gb Zones 1 & 2 • IP66 Rated |
JV231001 EXD ATEX Rated NAMUR Solenoid Operated Spool Valve Datasheet (PDF)
| NAMUR Interface & ¼" BSP Ports |
| 3/2 & 5/2 Interchangeable |
| Pressure 1.5 to 8 Bar |
 |
